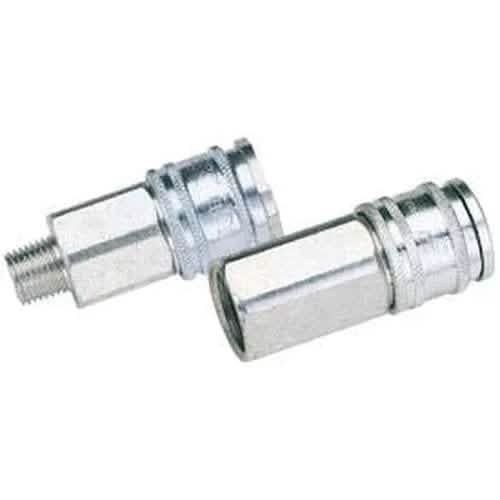

Draper 1/2" Bsp Parallel Euro Coupling Male Thread (Sold Loose) Dr-54406

Draper 1/2" BSP Parallel Euro Coupling Male Thread (Sold Loose) DR-54406

• For heavy duty high flow applications• BSP parallel• Tested to over 1 million cycles• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)• Zinc passivated to significantly improve corrosion resistance• Hard wearing steel constructionSold loose.




Flow capacity at 6 bar inlet and
0.5bar pressure drop      78cfm (2200L/min)
Max. working pressure      500psi (35bar)
Test pressure      725psi (50bar)
Max. burst pressure      2030psi (140bar)
Temp. range      -40 to 100℃
Nominal flow diameter      7.4mm






5010559544066
PartNo-AC71JM BULK
Draper 54406
