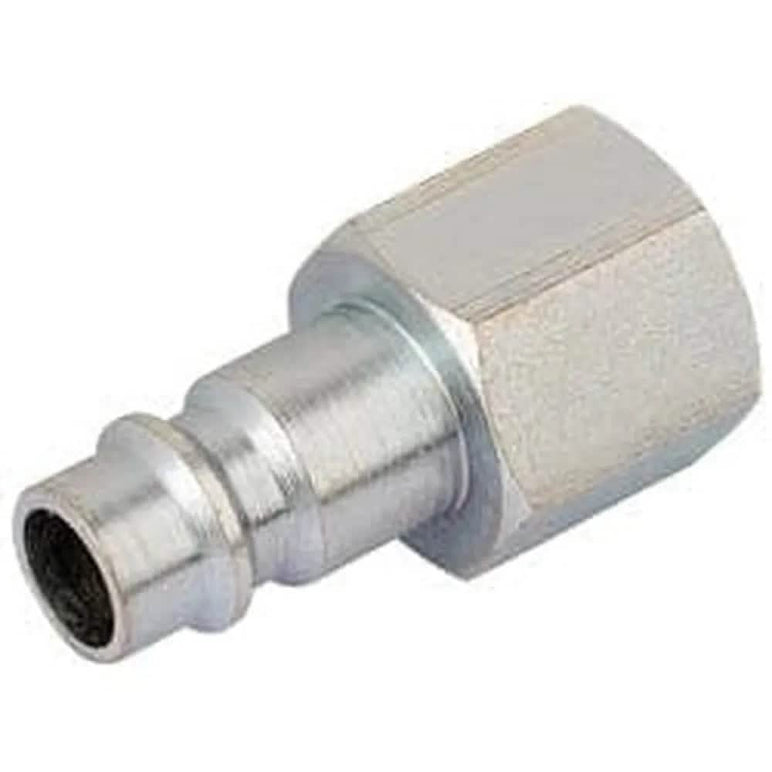

Draper 1/4" Bsp Female Nut Pcl Euro Coupling Adaptor (Sold Loose) Dr-54419

Draper 1/4" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose) DR-54419

• For heavy duty high flow applications• Tested to over 1 million cycles• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)• Zinc passivated to significantly improve corrosion resistance• Hard wearing steel constructionSold loose.




Flow capacity at 6 bar inlet and
0.5bar pressure drop      78cfm (2200L/min)
Max. working pressure      500psi (35bar)
Test pressure      725psi (50bar)
Max. burst pressure      2030psi (140bar)
Temp. range      -40 to 100℃
Nominal flow diameter      7.4mm






5010559544196
PartNo-A7106 BULK
Draper 54419
