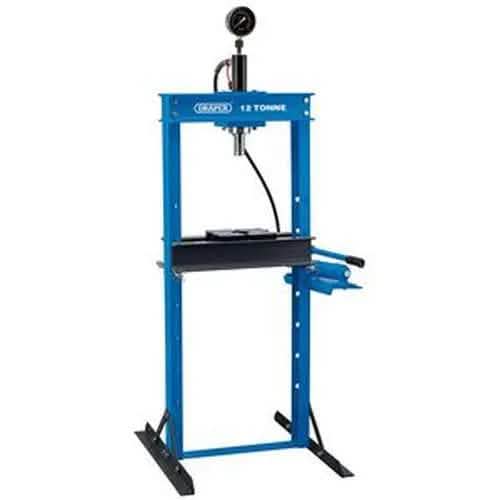

Draper 12 Tonne Floor Press Dr-70539

Draper 12 Tonne Floor Press DR-70539

Robust hydraulic 12 tonne floor press with sliding ram. There are eight adjustable table heights: 224, 344, 464, 584, 704, 824, 944 and 1064mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection. Fitted with a safety valve to pretend the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.


1 x 12 Tonne Floor Press

Capacity: 12 tonne
Frame Depth: 80mm
Frame Height: 1350mm
Frame width: 630mm
Max Table to Ram Height: 917mm (max.)
Min Table to Ram Height: 77mm (max.)
Overall height: 1655mm
Ram stroke: 180mm
Ram Type: Sliding
Working table width: 455mm
Weight: 78.5kg






5010559705399
PartNo-HFP/12
Draper 70539
