Draper 12V Dc Atv Spot/ Broadcast Sprayer, 60L Dr-34676

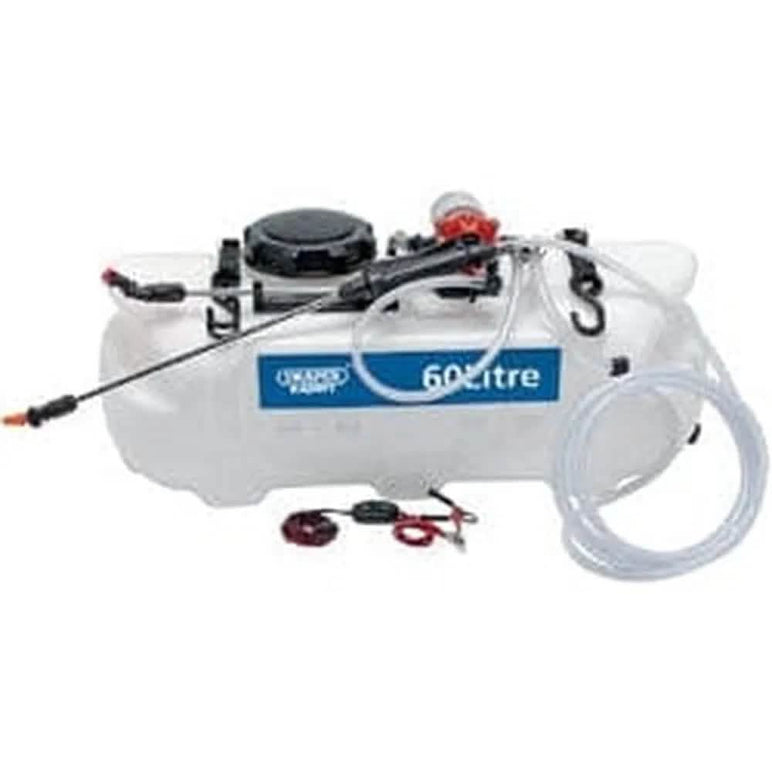

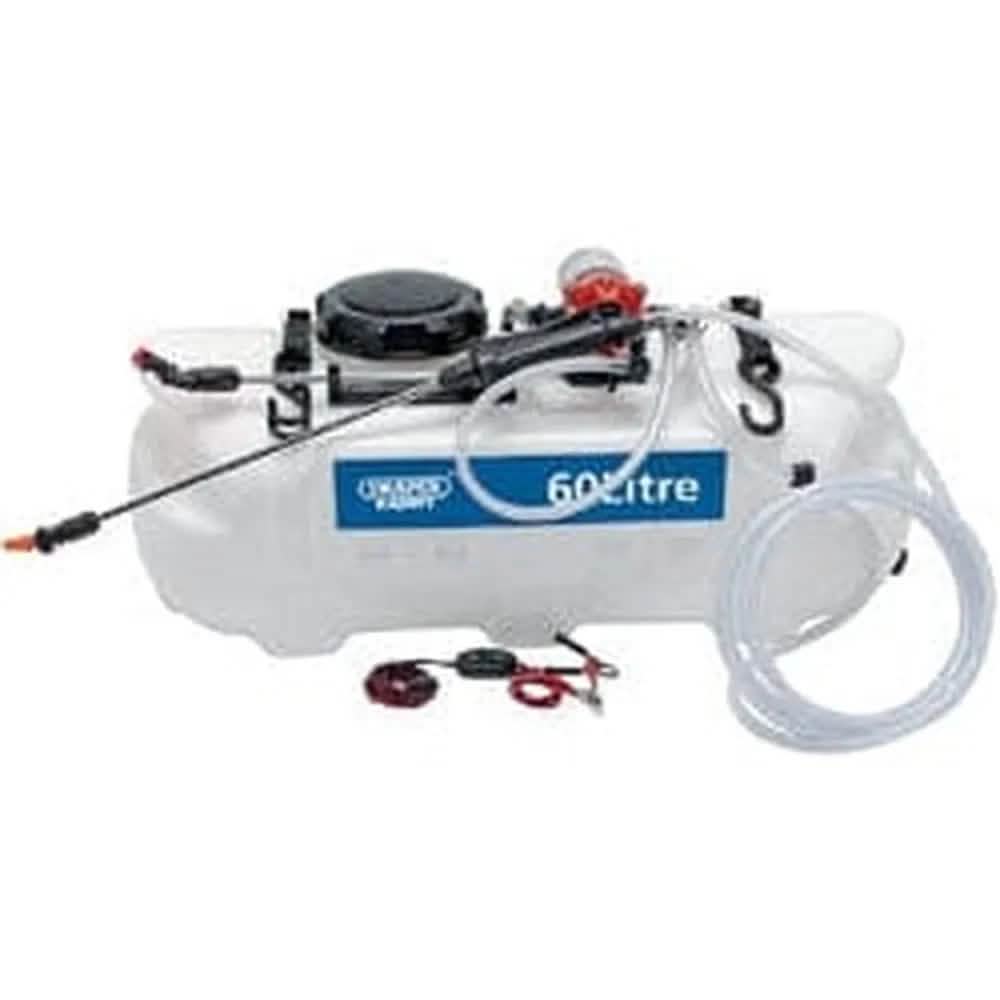

Draper 12V DC ATV Spot/ Broadcast Sprayer, 60L DR-34676

Expert Quality, mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de - icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation. Display carton.




Maximum flow rate (b/cast lance)   8.3L/min
Maximum pressure (b/cast lance)   70psi (4.86bar)
Maximum flow rate (hand lance)   3.8L/min
Maximum pressure (hand lance)   40psi (2.76bar)
Spray pattern (both lances)   Stream/Cone
Hose length (hand lance)   4.5M
Tank dimensions: 864 x 368 x 419mm
Weight   8.3kg (empty)






5010559346769
PartNo-SS60L
Draper 34676
