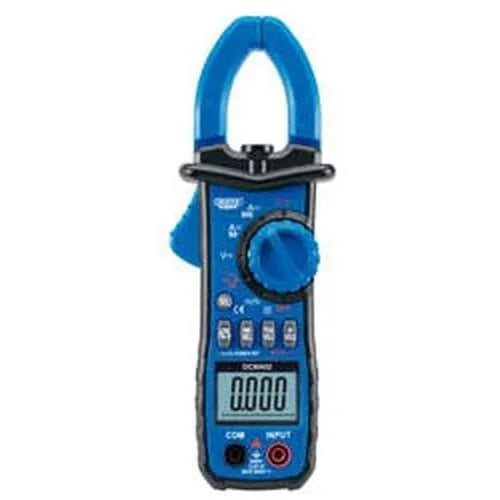

Draper Auto-Ranging Digital Clamp Meter With Linear Bar Graph Function Dr-41967

Draper Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function DR-41967

Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.




AC Current: 60A/600A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 3 x AAA (supplied)
Capacitance: 999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
DC Current: 60A/600A
DC Voltage: 600mV/6V/60V/600V
Dimensions: 228mm x 158mm x 58mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature Range: -50℃ - 1000℃/-58℉ - 1832℉
Weight: 400g (approx)






5010559419678
PartNo-DCM402
Draper 41967
