Draper Automotive Digital Multimeter Dr-41822

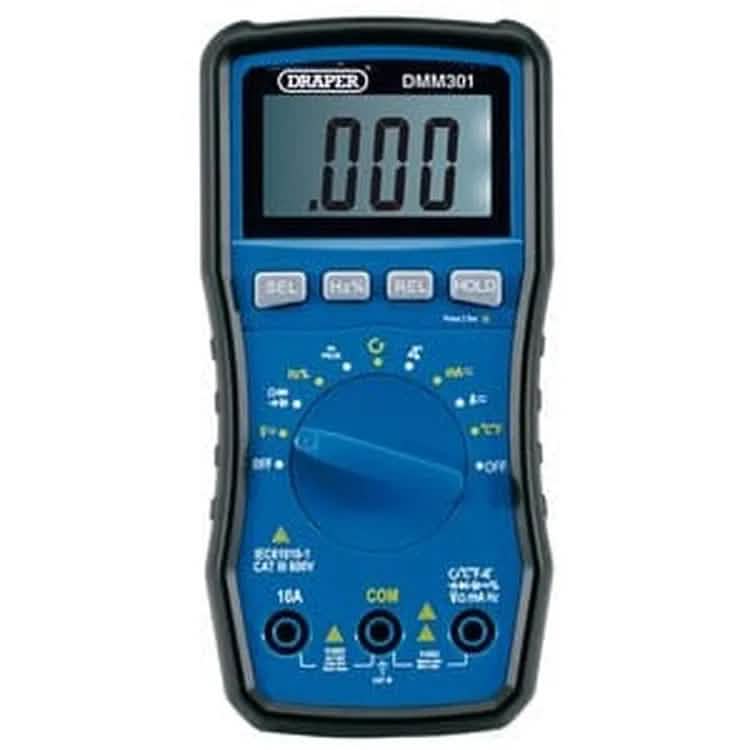

Draper Automotive Digital Multimeter DR-41822

Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x AAA batteries.




AC Current: 60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: PP3
Capacitance: 40nF/400nF/4μF/40μF/400μF/4000μF
DC Current: 60mA/600mA/6A/10A
DC Voltage: 6V/60V/600V
Dimensions: 184mm x 186mm x 72mm
Diode on/off Test: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: RPM4 120-20000, RPM2 60-20000
Temperature Range: -20℃ - 1000℃/-4℉ - 1832℉
Weight: 507g (approx)






5010559418220
PartNo-DMM301
Draper 41822
