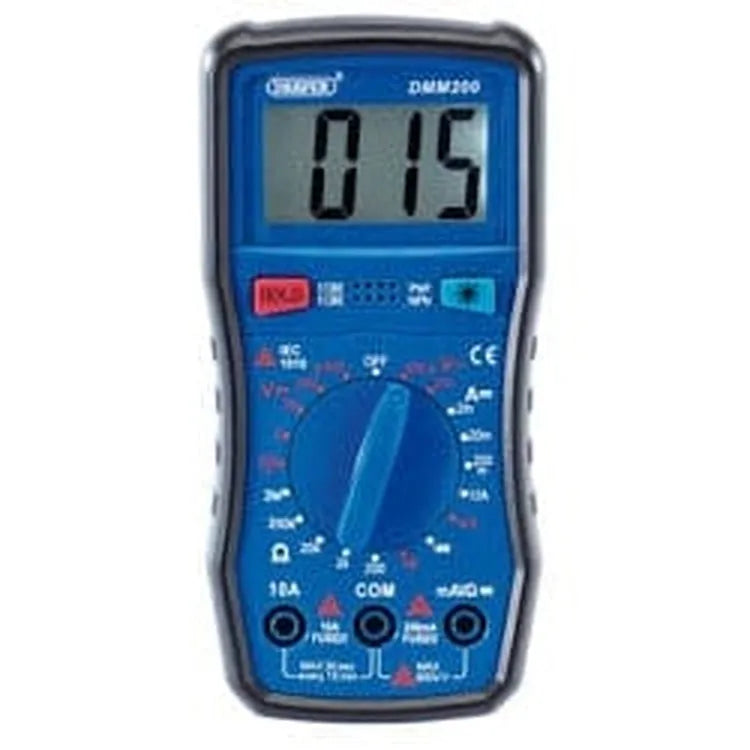

Draper Manual-Ranging Digital Multimeter, 1 X Test Leads, 1 X Case Dr-41817

Draper Manual-Ranging Digital Multimeter, 1 x Test Leads, 1 x Case DR-41817

Manual ranging capable of voltage, current, hEF and resistance testing. Fitted with a backlit LCD screen, auto power off, continuity buzzer and data hold features. Supplied with test leads and 1 x 6F22 9V battery.




AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Battery: 6F22 9V
Capacitance: N/A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Dimensions: 150mm x 74mm x 43mm
Diode on/off Test: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20℃ - 1000℃
Weight: 233g (approx)






5010559418176
PartNo-DMM200
Draper 41817
