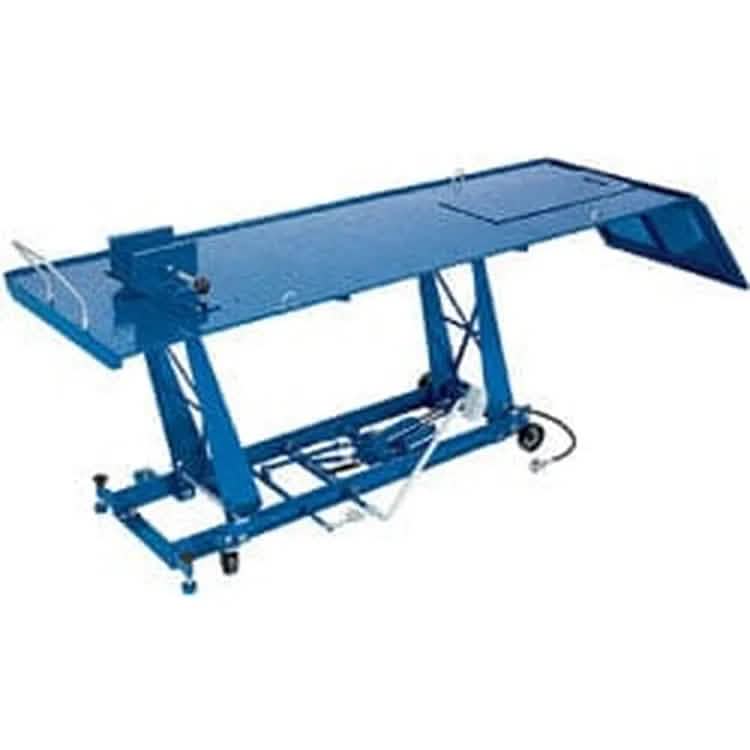

All steel construction operates on either heavy duty foot operated hydraulic pump or pneumatic pump system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Adjustable front wheel clamp and wheel stop bar. Removable rear panel to facilitate rear wheel changes. Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles. Supplied in wooden crate.
Capacity: 450kg (1000lbs)
Operating air pressure: 90psi (6.2bar)
Air inlet: 1/4"BSP
Lifting range: 180-815mm
Working height 1: 540mm
Working height 2: 730mm
Maximum height: 815mm
Closed height: 180mm
Working table (L x W): 2200 x 680mm
Loading ramp (L x W): 600 x 550mm
Rear-wheel removal panel (LxW): 690 x 245mm
Manufactured to EN1494 Specification
