Draper 2080 Pneumatic Long Chassis Low Profile Jack, 40 Tonne Dr-02080

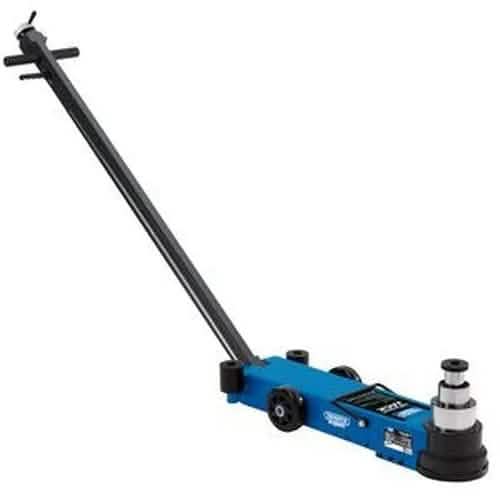

Draper Pneumatic Long Chassis Low Profile Jack, 40 Tonne DR-02080

Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.




Capacity stage 1   40 Tonne (40,000kg)
Capacity stage 2   20 Tonne (20,000kg)
Capacity stage 3   10 Tonne (10,000kg)
Minimum height   125mm
Maximum height stage 1   302mm (inc extensions)
Maximum height stage 2   347mm (inc extensions)
Maximum height stage 3   396mm (inc extensions)
Lift height stage 1   57mm
Lift height stage 2   45mm
Lift height stage 2   49mm
Operating air pressure   9 – 12BAR (130 – 174psi)
Air consumption   11.5cfm
Air inlet   1/4" BSP
Wheel diameter   125mm
Wheel width   47.5mm
Saddle diameter   70mm
Extensions   45mm and 75mm
Handle length   1380mm
Chassis size   830 x 179 x 125mm
Nett weight   44kg

Manufactured to EN1494 Specification




5010559020805
PartNo-PJ40LC
Draper 02080
