Draper Turbo Smoke Diagnostic Machine Dr-94078

Draper Turbo Smoke Diagnostic Machine DR-94078

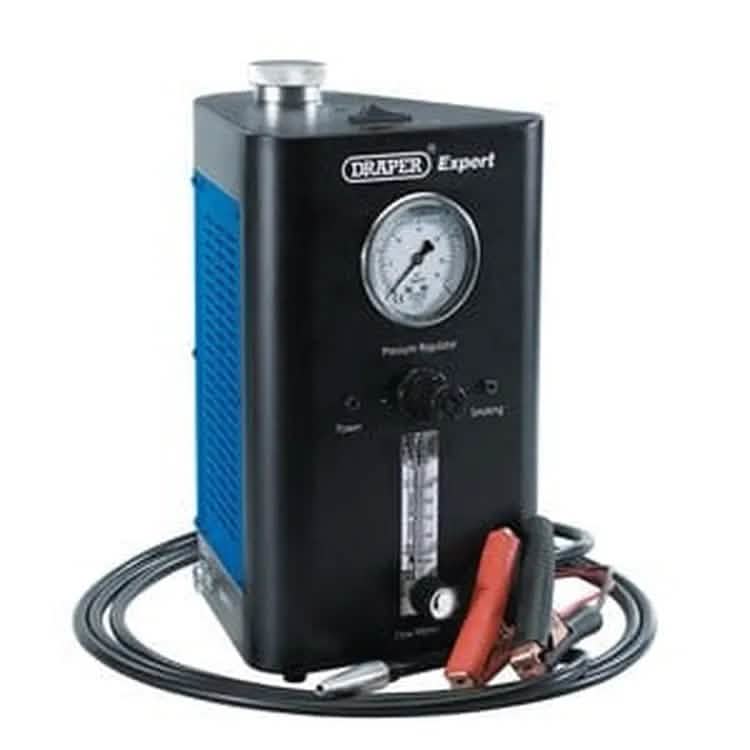

Expert Quality smoke diagnostic machine. Fitted with visual pressure, flow and fluid level indicators. Engineered to eliminate any guesswork when operating. The variable flow gauge and control makes pinpointing leaks precisely and quickly a breeze and the oil - filled gauge delivers added accuracy. Excels at finding all types of petrol and diesel system leaks including turbos, intercoolers, manifolds, brake boosters, EGR valves, brake vacuum hoses, cooling systems, air and waters leaks and much more. The air mode or smoke mode are easily switched between making it highly efficient when identifying leaks. The compact and lightweight design coupled with an onboard micro air compressor and 12V power connection delivers a fully portable unit, ideal for all types of mechanic including breakdown technicians. Supplied with 23 plastic plugs used to seal a variety of openings, 31mm-81mm cone adaptor, battery cable with crocodile clips, smoke outlet hose, air intake adaptor, a hand inflatable block off bladder and a hook. All stored in a convenient accessory storage case.




Power supply: 12V DC
Turbo Mode Output Pressure: 3-20 PSI
Operating Temperature: 0 ºF - 140ºF (-17ºC - 60ºC)
Hose Length: 3m (10ft)
Operating Modes: Smoke 5-minute cycle/air cycle
Recommended Fluid: Mineral oil (not supplied)
Dimensions: 280 x 185 x 165mm
Weight: 4kg






5010559940783
PartNo-SDM-TURBO
Draper 94078
